MetaData performance evaluation

The results of metadata performance testing through mdtest are as follows:

tool settings

#!/bin/bash
TEST_PATH=/mnt/cfs/mdtest # mount point of CubeFS volume
for CLIENTS in 1 2 4 8 # number of clients
do
mpirun --allow-run-as-root -np $CLIENTS --hostfile hfile01 mdtest -n 5000 -u -z 2 -i 3 -d $TEST_PATH;
done

Directory Creation

	1 Process	4 Processes	16 Processes	64 Processes
1 Client	448.618	2421.001	14597.97	43055.15
2 Clients	956.947	5917.576	28930.431	72388.765
4 Clients	2027.02	13213.403	54449.056	104771.356
8 Clients	4643.755	27416.904	89641.301	119542.62

Directory Removal

	1 Process	4 Processes	16 Processes	64 Processes
1 Client	399.779	2118.005	12351.635	34903.672
2 Clients	833.353	5176.812	24471.674	50242.973
4 Clients	1853.617	11462.927	46413.313	91128.059
8 Clients	4441.435	24133.617	74401.336	115013.557

Directory Status Check

	1 Process	4 Processes	16 Processes	64 Processes
1 Client	283232.761	1215309.524	4231088.104	12579177.02
2 Clients	572834.143	2169669.058	8362749.217	18120970.71
4 Clients	1263474.549	3333746.786	10160929.29	31874265.88
8 Clients	2258670.069	8715752.83	22524794.98	77533648.04

File Creation

	1 Process	4 Processes	16 Processes	64 Processes
1 Client	448.888	2400.803	13638.072	27785.947
2 Clients	925.68	5664.166	25889.163	50434.484
4 Clients	2001.137	12986.968	50330.952	91387.825
8 Clients	4479.831	25933.437	86667.966	112746.199

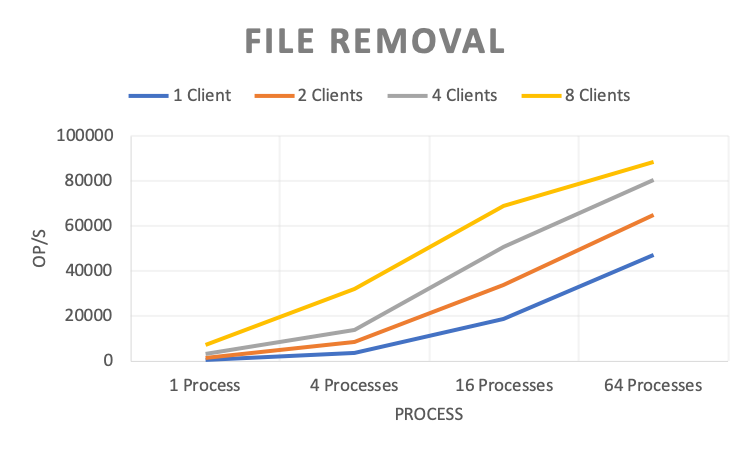

File Removal

	1 Process	4 Processes	16 Processes	64 Processes
1 Client	605.143	3678.138	18631.342	47035.912
2 Clients	1301.151	8365.667	34005.25	64860.041
4 Clients	3032.683	14017.426	50938.926	80692.761
8 Clients	7170.386	32056.959	68761.908	88357.563

Tree Creation

	1 Process	4 Processes	16 Processes	64 Processes
1 Client	305.778	229.562	86.299	23.917
2 Clients	161.31	211.119	76.301	24.439
4 Clients	260.562	223.153	81.209	23.867
8 Clients	350.038	220.744	81.621	17.144

Tree Removal

	1 Process	4 Processes	16 Processes	64 Processes
1 Client	137.462	70.881	31.235	7.057
2 Clients	217.026	113.36	23.971	7.128
4 Clients	231.622	113.539	30.626	7.299
8 Clients	185.156	83.923	20.607	5.515
